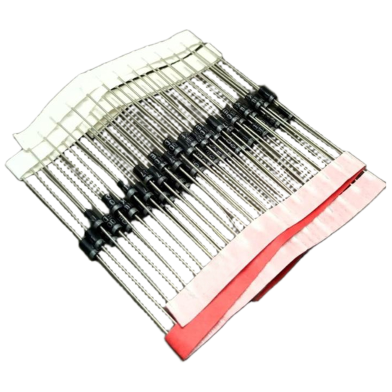

With a 1000V maximum reverse voltage, the 1N4007 General Rectifier Diode converts AC to DC in standard power supplies. This silicon PN junction component provides 1A continuous forward current for circuit rectification. A 50-piece pack supplies enough units for bridge rectifiers and DIY electronics projects.
Key Features
- 1000V Reverse Voltage: Peak repetitive reverse voltage of 1000V. Prevents component breakdown during high-voltage spikes in AC circuits.
- 1A Forward Current: 1A average rectified forward current capacity. Supports low-power loads without requiring active cooling.
- 1.1V Voltage Drop: Maximum forward voltage drop of 1.1V at 1A. Reduces power loss and heat generation during conduction.
- 30A Surge Capacity: 30A non-repetitive peak forward surge current. Survives sudden current inrush during power restoration after load shedding.
- DO-41 Axial Package: Through-hole mounting in a standard DO-41 package. Fits securely into breadboards and perforated PCBs.
Frequently Asked Questions
What is 1N4007 diode used for?
This component converts alternating current to direct current in power adapters and battery chargers. It also blocks reverse current to protect DC circuits from polarity reversal.
Can 1N4007 handle 220V AC?
The 1000V rating safely manages the peak voltages of a 220V AC line. It operates within safe margins for standard household power rectification.
